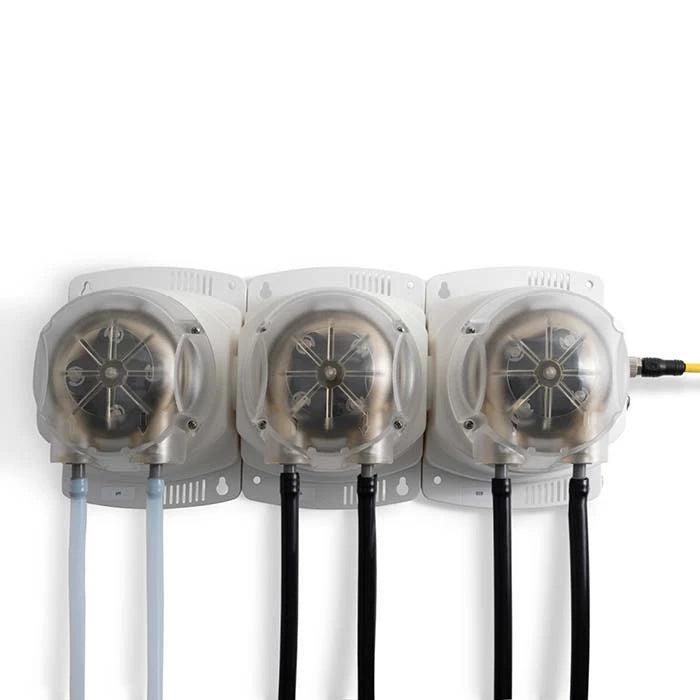

The Bluelab PeriPod L3 1200ml for Pro Controller is a high-flow, three-pump peristaltic dosing module designed for automated nutrient and pH solution delivery. Featuring three individually controlled pumps rated at 1200 mL/min each, the PeriPod L3 integrates with the Bluelab Pro Controller Wi-Fi (BCTPRC02) to support automated reservoir nutrient management.
Designed for growing operations requiring higher dosing volumes, the PeriPod L3 combines three high-capacity peristaltic pumps in one wall-mountable module. Each pump can deliver a separate nutrient stock solution or pH adjustment solution, providing flexible dosing channels for a compatible Bluelab automated control system.
Controller Compatibility: Bluelab Pro Controller Wi-Fi (BCTPRC02). A compatible controller is required for automated dosing operation.
Key Features
Three 1200 mL/min Peristaltic Pumps
Three integrated high-flow pumps provide individually controlled dosing channels, each rated at 1200 mL/min (40.6 fl oz/min).
Controller-Managed Nutrient Delivery
Integrates with the Bluelab Pro Controller Wi-Fi to automate nutrient and pH solution dosing according to the controller's configured management settings.
Designed for Higher-Volume Applications
The L-series pumps deliver ten times the nominal flow rate of the 120 mL/min M-series pumps, making the L3 suitable for systems requiring faster solution delivery.
Replaceable Pumps, Cassettes and Tubing
The modular design supports maintenance with replaceable peristaltic pumps, pump cassettes and tubing.
High-Flow Automated Nutrient and pH Dosing
The Bluelab PeriPod L3 provides three high-flow dosing channels for automated nutrient and pH management. Connected to the Bluelab Pro Controller Wi-Fi, the module delivers nutrient concentrates and pH adjustment solutions according to the controller's configured dosing program.
With a nominal flow rate of 1200 mL/min per pump, the L3 is designed for applications where higher dosing volumes are required. Its three independently controlled channels allow different nutrient or pH solutions to be delivered through separate pumps.
- Three dosing channels: Individually controlled pumps for separate nutrient and pH solutions.
- 1200 mL/min per pump: High-flow solution delivery for larger dosing requirements.
- Automated operation: Designed for use with the Bluelab Pro Controller Wi-Fi.
- Flexible dosing configuration: Assign individual pumps to different nutrient stock solutions.
- Maintainable components: Replaceable pumps, cassettes and tubing support ongoing servicing.
Designed for the Bluelab Pro Controller Wi-Fi
The PeriPod L3 operates as part of a Bluelab Pro Controller Wi-Fi automated dosing system. The controller manages dosing decisions, while the L3 delivers the required solutions through its three high-flow peristaltic pumps.
This arrangement allows growers to configure separate dosing channels for their nutrient management requirements while keeping dosing equipment organized in a wall-mountable installation.
Compatible Controller: Bluelab Pro Controller Wi-Fi (BCTPRC02).
Product Specifications & Documentation
Technical Specifications
| Product | Bluelab PeriPod L3 1200ml for Pro Controller |
|---|---|
| Manufacturer | Bluelab |
| Product Type | High-flow peristaltic dosing module |
| Pump Configuration | 3 individually controlled peristaltic pumps |
| Flow Rate | 1200 mL/min per pump (40.6 fl oz/min) |
| Flow Rate Accuracy | ±10% at 25°C (77°F) |
| Power Supply | 24V DC power supply |
| Controller Compatibility | Bluelab Pro Controller Wi-Fi (BCTPRC02) |
| Solution Temperature | 5–40°C (41–104°F) |
| Operating Environment | 5–40°C (41–104°F) |
| Installation | Wall-mountable |
| Maintenance | Replaceable peristaltic pumps, pump cassettes and tubing |
| Country of Origin | New Zealand |
| Warranty | 2-year limited manufacturer warranty; 6 months for cassette and tubing |
Installation Diagram
Refer to the official Bluelab installation diagram for guidance on connecting PeriPod dosing equipment to a compatible automated nutrient management system.
Product Manual & Documentation
Access the official Bluelab PeriPod instruction manual for installation, operation, maintenance and servicing information.
View Bluelab PeriPod Instruction Manual (PDF)See Bluelab PeriPods in an Automated Dosing System
Explore how Bluelab dosing equipment integrates into automated nutrient management systems. These manufacturer videos demonstrate Bluelab controllers and feature PeriPod dosing equipment.
Bluelab Pro Controller Wi-Fi Overview
Learn how the Bluelab Pro Controller Wi-Fi supports automated nutrient and pH management with connected dosing equipment.
Bluelab IntelliDose Controller Kit Overview
An additional overview of Bluelab automated nutrient management technology and dosing system applications.
Videos provide general information about Bluelab automated dosing systems. For PeriPod L3 compatibility, refer to the technical specifications above.
What's Included in the Box
- Bluelab PeriPod L3 three-pump high-flow dosing module
- Getting Started Guide
- 4 m (13 ft) of high-strength, acid/alkaline-resistant tubing for pH adjustment solution dosing
- 3 × 4 m (13 ft) lengths of food-grade tubing for nutrient stock solution dosing
