Automated Nutrient Dosing & pH Control
The Bluelab IntelliDose Controller Kit simplifies hydroponic nutrient management by automating nutrient dosing, EC and pH control, and irrigation scheduling. Designed for commercial growers and hydroponic systems, IntelliDose helps maintain consistent growing conditions while reducing manual adjustments.
With support for up to a 9-part nutrient blend, programmable irrigation outputs, and optional Edenic connectivity, IntelliDose delivers flexible control for a wide range of growing applications.
Key Features
Automatically manage nutrient dosing and maintain target EC and pH levels.
Supports dosing configurations with up to nine nutrient components, additives and pH adjusters.
Manage up to four irrigation outputs with programmable watering schedules.
Enable remote monitoring, control and alerts using Bluelab IntelliLink and Edenic.
Technical Specifications
The Bluelab IntelliDose Controller provides automated nutrient dosing, pH regulation and irrigation management for compatible hydroponic growing systems.
Measurement Specifications
| Measurement | Range | Resolution | Accuracy |
|---|---|---|---|
| pH | 2–12 | 0.1 | ±0.1 |
| Temperature | 0–50°C / 32–122°F | 1°C / 1°F | ±1°C / ±2°F |
| EC | 0–10 | 0.1 | ±0.1 |
| CF | 0–100 | 1 | ±1.0 |
| ppm 500 (TDS) | 0–5000 | 5 | ±50 |
Control Capabilities
- Automated EC and pH dosing with fail-safe shut-offs.
- Conductivity measurements in EC, CF, ppm 500 and ppm 700.
- pH adjustment in the up (alkali) or down (acid) direction.
- Separate EC setpoints for day and night.
- Water addition to help reduce EC.
- Up to four programmable irrigation outputs.
- Supports NFT, DFT/DWC, soil, media, drip and aeroponic systems.
- Email and SMS alerts with the required connected configuration.
Operating Requirements
- Operating temperature: 0–50°C / 32–122°F
- Power source: 100–240 VAC, 50–60 Hz
- Controller outputs: Nine 24 VDC outputs, or the same voltage as the supplied power pack.
Manufacturer Warranty
Bluelab specifies a two-year limited warranty for the IntelliDose Controller and a six-month warranty for the Bluelab pH Probe. Coverage is subject to the manufacturer's warranty terms.
Product Manual
Access the official Bluelab IntelliDose Controller English-language manual for installation, configuration, calibration and operation.
View Product Manual (PDF) ↗Installation Diagram

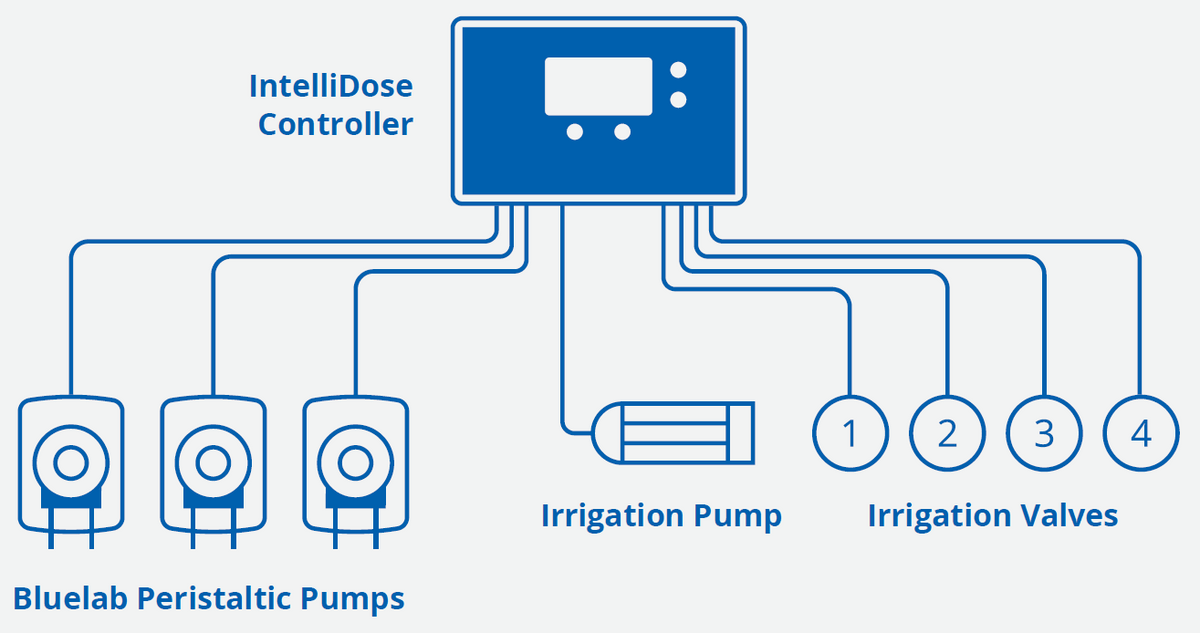

Explore an example IntelliDose drip-to-waste installation with nutrient dosing pumps, EC and pH probes, a mixing tank and multiple irrigation stations.
The diagram illustrates system connections and identifies equipment supplied separately.
View Installation Diagram (PDF) ↗Bluelab IntelliDose Controller Overview

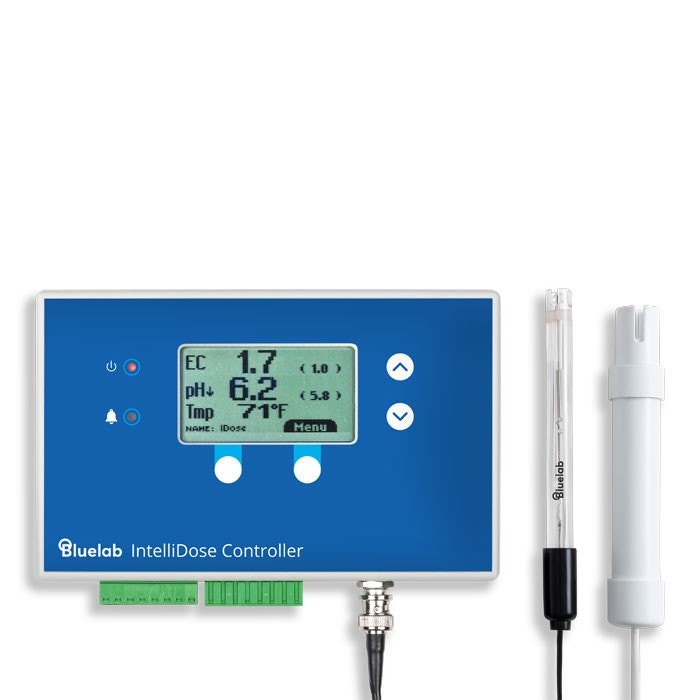

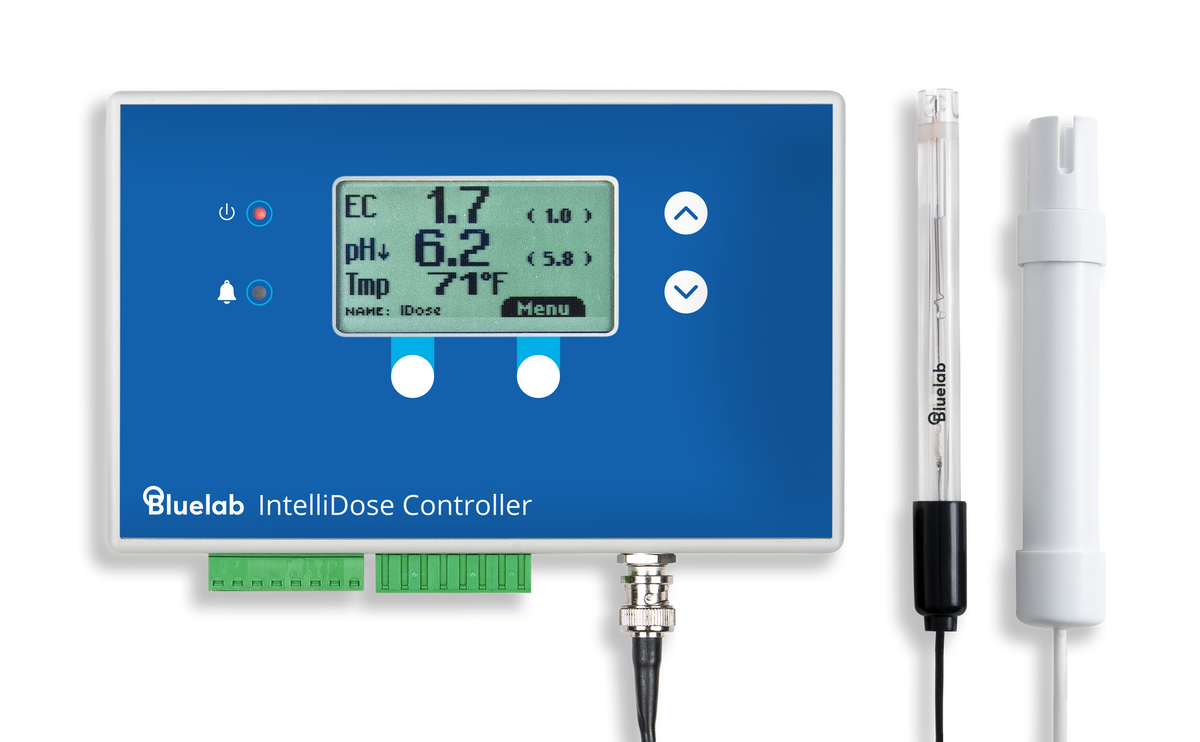

What's Included in the Box
The Bluelab IntelliDose Controller Kit includes:
- 1 × Bluelab IntelliDose Controller
- 1 × Bluelab Conductivity Probe
- 1 × Bluelab pH Probe (5 m)
- 1 × Bluelab Sample Pot
- 1 × 24 VDC 2.5 A Power Supply
- 1 × USB Cable (3 m)
- 4 × Mounting Screws
- 4 × Plasterboard Anchors
- 2 × pH 7.0 Calibration Solution Sachets
- 2 × pH 4.0 Calibration Solution Sachets
- 2 × KCl Storage Solution Sachets
- 1 × Instruction Manual
Please note: Compatible dosing pumps and Bluelab IntelliLink are sold separately.
