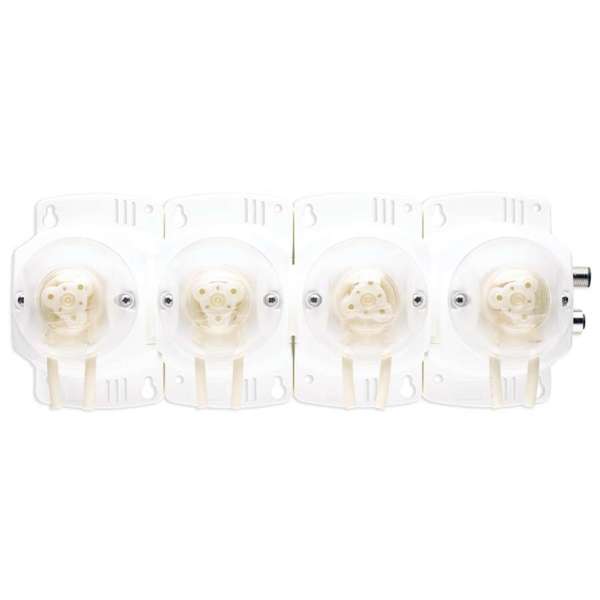

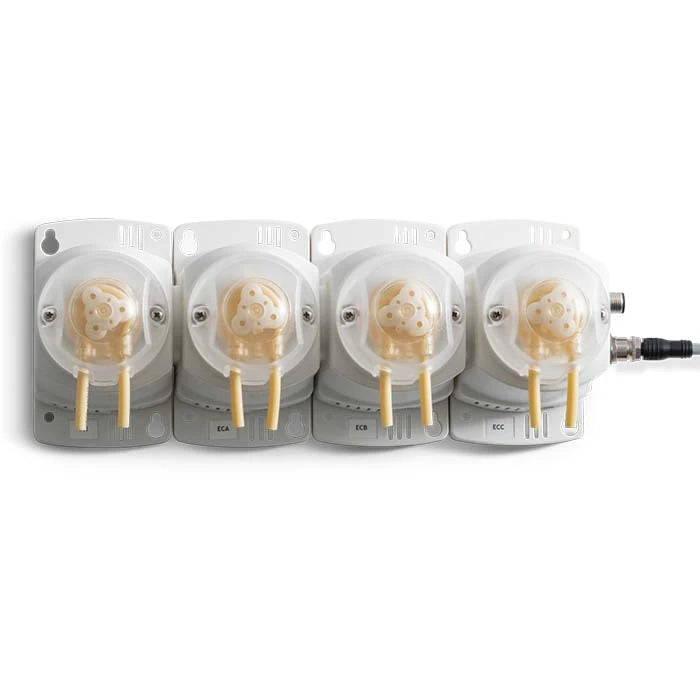

The Bluelab PeriPod M4 for Pro Controller is a four-pump peristaltic dosing module designed for automated nutrient and pH solution delivery. Featuring four individually controlled pumps, each delivering up to 120 mL/min, the PeriPod M4 integrates with the Bluelab Pro Controller Wi-Fi (BCTPRC02) to support consistent, controller-managed dosing in professional growing environments.
Combining four peristaltic pumps in one compact, wall-mountable module, the PeriPod M4 provides additional dosing capacity for growers managing multiple nutrient stock solutions and pH adjustment. Each pump can be controlled independently through a compatible Bluelab controller, allowing flexible configuration of automated nutrient management systems.
Controller Compatibility: Bluelab Pro Controller Wi-Fi (BCTPRC02). A compatible controller is required for automated dosing operation.
Key Features
Four Individually Controlled Pumps
Four integrated peristaltic pumps provide separate dosing channels for nutrient stock solutions and pH adjustment, with flow rates up to 120 mL/min per pump.
Controller-Managed Nutrient Dosing
Integrates with the Bluelab Pro Controller Wi-Fi to automate nutrient and pH solution delivery according to the controller's configured dosing settings.
Space-Saving, Wall-Mountable Design
Four dosing pumps are combined in a single compact module, helping organize nutrient dosing equipment and simplify installation around the reservoir.
Replaceable Pumps, Cassettes and Tubing
Replaceable peristaltic pumps, pump cassettes and tubing support routine maintenance and ongoing operation of the dosing system.
Automated Nutrient and pH Dosing
The Bluelab PeriPod M4 provides four individually controlled dosing channels for automated reservoir nutrient management. Connected to the Bluelab Pro Controller Wi-Fi, the module delivers nutrient concentrates and pH adjustment solutions according to the controller's configured dosing program.
The additional pump channel makes the M4 suitable for nutrient management setups requiring more dosing inputs than a three-pump configuration. Its compact design keeps dosing equipment organized while allowing growers to manage multiple solutions through a single module.
- Four dosing channels: Individually controlled pumps for separate nutrient and pH adjustment solutions.
- 120 mL/min per pump: Controlled delivery through each integrated peristaltic pump.
- Controller-managed operation: Designed for use with the Bluelab Pro Controller Wi-Fi.
- Flexible dosing configuration: Assign individual pumps to different nutrient stock solutions.
- Serviceable components: Replaceable pumps, cassettes and tubing support ongoing maintenance.
Designed for the Bluelab Pro Controller Wi-Fi
The PeriPod M4 operates as part of a Bluelab Pro Controller Wi-Fi automated dosing system. The controller manages dosing decisions, while the PeriPod M4 delivers the required solutions through its four peristaltic pumps.
This modular arrangement allows growers to configure multiple dosing channels according to their nutrient management requirements while maintaining a compact, organized installation.
Compatible Controller: Bluelab Pro Controller Wi-Fi (BCTPRC02).
Product Specifications & Documentation
Technical Specifications
| Product | Bluelab PeriPod M4 for Pro Controller |
|---|---|
| Manufacturer | Bluelab |
| Product Type | Automated peristaltic dosing module |
| Pump Configuration | 4 individually controlled peristaltic pumps |
| Flow Rate | Up to 120 mL/min per pump (4.06 fl oz/min) |
| Flow Rate Accuracy | ±10% at 25°C (77°F) |
| Power Supply | 24V DC, 3A |
| Controller Compatibility | Bluelab Pro Controller Wi-Fi (BCTPRC02) |
| Solution Temperature | 5–40°C (41–104°F) |
| Operating Environment | 5–40°C (41–104°F) |
| Installation | Wall-mountable |
| Maintenance | Replaceable peristaltic pumps, pump cassettes and tubing |
| Country of Origin | New Zealand |
| Warranty | 2-year limited manufacturer warranty; 6 months for cassette and tubing |
Installation Diagram
Refer to the official Bluelab installation diagram for guidance on integrating PeriPod dosing equipment into a compatible automated nutrient management system.
Product Manual & Documentation
Access the official Bluelab PeriPod instruction manual for installation, operation, maintenance and servicing information.
View Bluelab PeriPod Instruction Manual (PDF)See Bluelab PeriPods in an Automated Dosing System
Explore how Bluelab dosing equipment integrates into automated nutrient management systems. These manufacturer videos demonstrate Bluelab controllers and feature PeriPod dosing equipment.
Bluelab Pro Controller Wi-Fi Overview
Learn how the Bluelab Pro Controller Wi-Fi supports automated nutrient and pH management with connected dosing equipment.
Bluelab IntelliDose Controller Kit Overview
An additional overview of Bluelab automated nutrient management technology and dosing system applications.
Videos provide general information about Bluelab automated dosing systems. For PeriPod M4 compatibility, refer to the technical specifications above.
What's Included in the Box
- Bluelab PeriPod M4 four-pump dosing module
- Getting Started Guide
- 4 m (13 ft) of high-strength, acid/alkaline-resistant tubing for pH adjustment solution dosing
- 3 × 4 m (13 ft) lengths of food-grade tubing for nutrient stock solution dosing
