Automated Nutrient & pH Dosing for IntelliDose

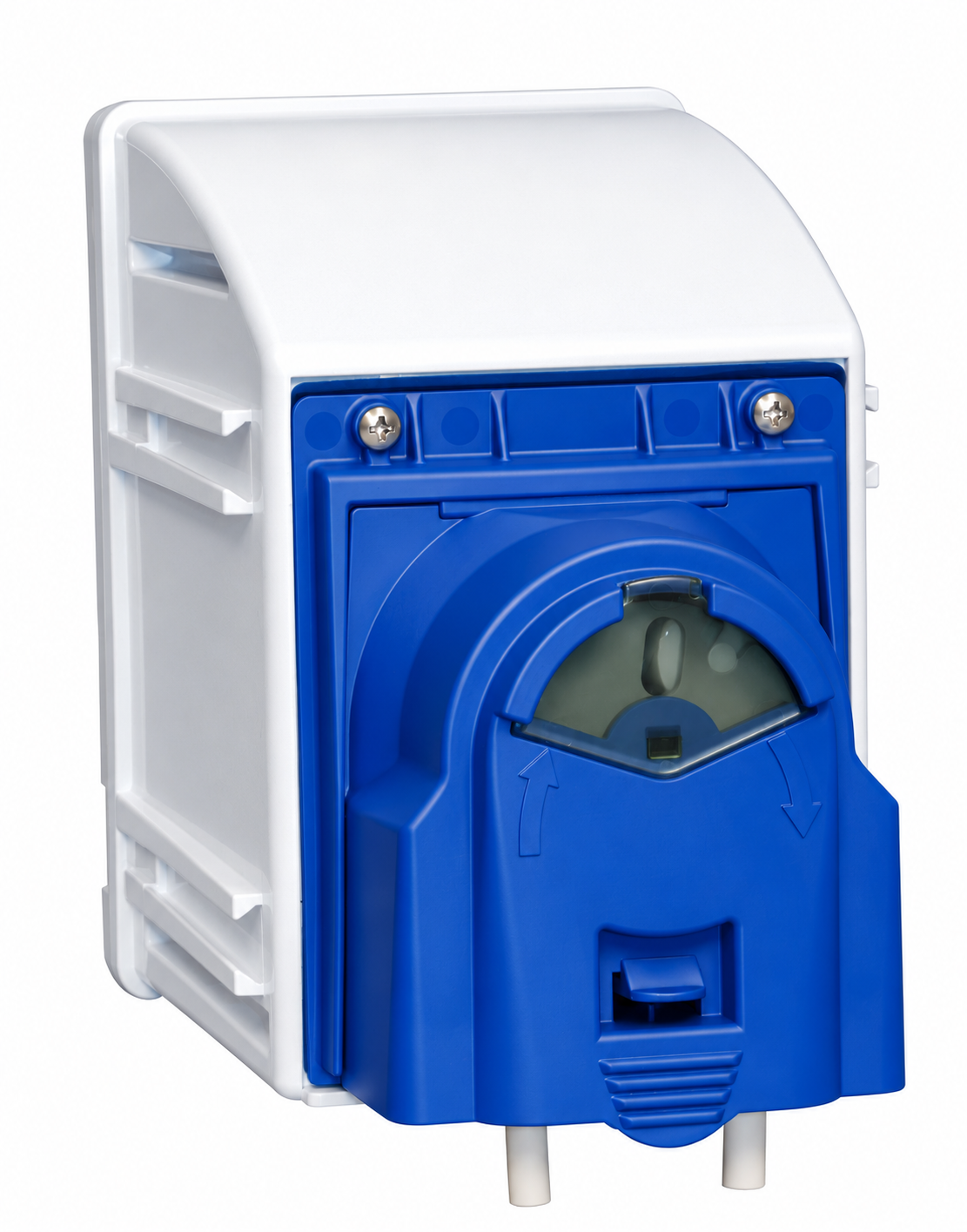

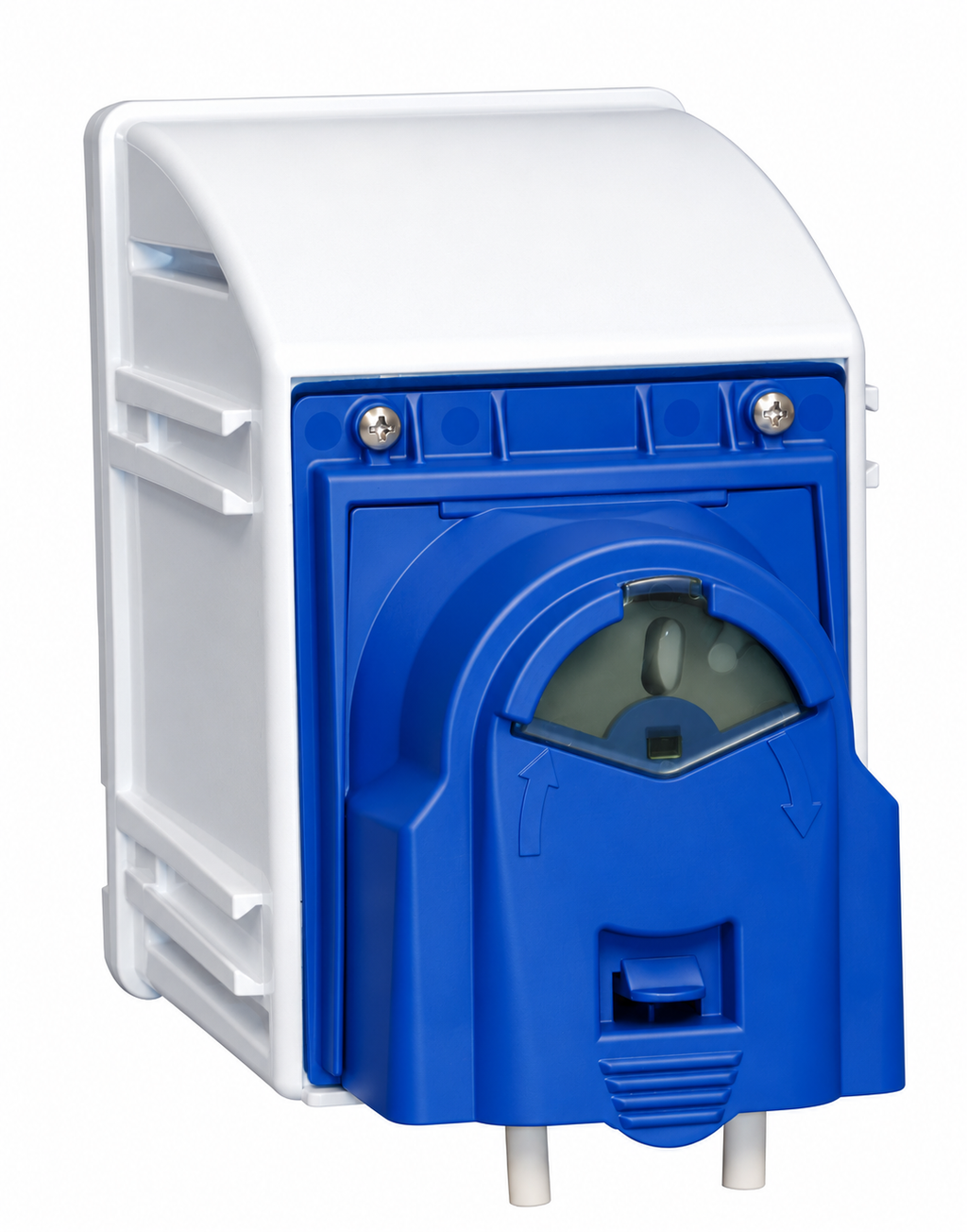

The Bluelab Peristaltic Pump 450ml is designed for automated nutrient and pH dosing in commercial growing systems. Compatible with the Bluelab IntelliDose Controller, it delivers a flow rate of 450ml per minute for controlled liquid dosing.
Its Quick Change Pump design allows tool-free squeeze tube replacement, while the spring-loaded roller mechanism compensates for tube wear and variations to help maintain consistent dosing performance.
Key Features
Delivers 450ml (15.22 fl oz) per minute for automated nutrient and pH dosing.
Replace the squeeze tube without tools for easier maintenance.
Spring-loaded rollers adjust for tube wear and manufacturing tolerances.
Designed for integration with the Bluelab IntelliDose Controller.
Technical Specifications
The Bluelab 450ml Peristaltic Pump provides automated liquid dosing when connected to a compatible Bluelab IntelliDose Controller.
General Specifications
| Product | Bluelab Peristaltic Pump 450ml |
|---|---|
| SKU | BPU45001 |
| GTIN | 09421024923136 |
| Flow Rate | 450ml/min (15.22 fl oz/min) |
| Flow Rate Accuracy | ±10% at 25°C / 77°F |
| Power | 24V DC |
| Compatible Controller | Bluelab IntelliDose (BCTIND01) |
| Warranty | 1-year limited manufacturer warranty |
Operating Environment
| Solution Temperature | 5–40°C / 41–104°F |
|---|---|
| Operating Temperature | 5–40°C / 41–104°F |
| Phosphoric Acid | Less than 80% by volume |
| Nitric Acid | Less than 35% by volume |
| Sulphuric Acid | Less than 30% by volume |
| Citric Acid | Less than 20% by volume |
Pump & Tubing Specifications
| Pump Design | Quick Change Peristaltic Pump |
|---|---|
| Roller Mechanism | Spring-loaded roller block with automatic tube wear compensation |
| Recommended Tubing | 3/8-inch ID × 1/2-inch OD (9.5mm × 12.7mm) nutrient or acid tubing |
| Expected Pump Operating Life | 750–1,000 hours |
What's Included in the Box
The Bluelab Peristaltic Pump 450ml package includes:
- 1 × Bluelab Peristaltic Pump 450ml
- 1 × Getting Started Guide
